Build a User Management App with Angular

This tutorial demonstrates how to build a basic user management app. The app authenticates and identifies the user, stores their profile information in the database, and allows the user to log in, update their profile details, and upload a profile photo. The app uses:

Supabase Database - a Postgres database for storing your user data and Row Level Security so data is protected and users can only access their own information.
Supabase Auth - users log in through magic links sent to their email (without having to set up passwords).
Supabase Storage - users can upload a profile photo.

Supabase User Management example

note

If you get stuck while working through this guide, refer to the full example on GitHub.

Project setup#

Before we start building we're going to set up our Database and API. This is as simple as starting a new Project in Supabase and then creating a "schema" inside the database.

Create a project#

Create a new project in the Supabase Dashboard.
Enter your project details.
Wait for the new database to launch.

Set up the database schema#

Now we are going to set up the database schema. We can use the "User Management Starter" quickstart in the SQL Editor, or you can just copy/paste the SQL from below and run it yourself.

Go to the SQL Editor page in the Dashboard.
Click User Management Starter.
Click Run.

note

You can easily pull the database schema down to your local project by running the db pull command. Read the local development docs for detailed instructions.


_10supabase link --project-ref <project-id>
_10# You can get <project-id> from your project's dashboard URL: https://supabase.com/dashboard/project/<project-id>
_10supabase db pull

Get the API Keys#

Now that you've created some database tables, you are ready to insert data using the auto-generated API. We just need to get the Project URL and anon key from the API settings.

Go to the API Settings page in the Dashboard.
Find your Project URL, anon, and service_role keys on this page.

Building the App#

Let's start building the Angular app from scratch.

Initialize an Angular app#

We can use the Angular CLI to initialize an app called supabase-angular:


_10npx ng new supabase-angular --routing false --style css
_10cd supabase-angular

Then let's install the only additional dependency: supabase-js


_10npm install @supabase/supabase-js

And finally we want to save the environment variables in the environment.ts file. All we need are the API URL and the anon key that you copied earlier. These variables will be exposed on the browser, and that's completely fine since we have Row Level Security enabled on our Database.

environment.ts


_10export const environment = {
_10  production: false,
_10  supabaseUrl: 'YOUR_SUPABASE_URL',
_10  supabaseKey: 'YOUR_SUPABASE_KEY',
_10}

Now that we have the API credentials in place, let's create a SupabaseService with ng g s supabase to initialize the Supabase client and implement functions to communicate with the Supabase API.

src/app/supabase.service.ts


_73import { Injectable } from '@angular/core'
_73import {
_73  AuthChangeEvent,
_73  AuthSession,
_73  createClient,
_73  Session,
_73  SupabaseClient,
_73  User,
_73} from '@supabase/supabase-js'
_73import { environment } from 'src/environments/environment'
_73
_73export interface Profile {
_73  id?: string
_73  username: string
_73  website: string
_73  avatar_url: string
_73}
_73
_73@Injectable({
_73  providedIn: 'root',
_73})
_73export class SupabaseService {
_73  private supabase: SupabaseClient
_73  _session: AuthSession | null = null
_73
_73  constructor() {
_73    this.supabase = createClient(environment.supabaseUrl, environment.supabaseKey)
_73  }
_73
_73  get session() {
_73    this.supabase.auth.getSession().then(({ data }) => {
_73      this._session = data.session
_73    })
_73    return this._session
_73  }
_73
_73  profile(user: User) {
_73    return this.supabase
_73      .from('profiles')
_73      .select(`username, website, avatar_url`)
_73      .eq('id', user.id)
_73      .single()
_73  }
_73
_73  authChanges(callback: (event: AuthChangeEvent, session: Session | null) => void) {
_73    return this.supabase.auth.onAuthStateChange(callback)
_73  }
_73
_73  signIn(email: string) {
_73    return this.supabase.auth.signInWithOtp({ email })
_73  }
_73
_73  signOut() {
_73    return this.supabase.auth.signOut()
_73  }
_73
_73  updateProfile(profile: Profile) {
_73    const update = {
_73      ...profile,
_73      updated_at: new Date(),
_73    }
_73
_73    return this.supabase.from('profiles').upsert(update)
_73  }
_73
_73  downLoadImage(path: string) {
_73    return this.supabase.storage.from('avatars').download(path)
_73  }
_73
_73  uploadAvatar(filePath: string, file: File) {
_73    return this.supabase.storage.from('avatars').upload(filePath, file)
_73  }
_73}

Optionally, update src/styles.css to style the app.

Let's set up an Angular component to manage logins and sign ups. We'll use Magic Links, so users can sign in with their email without using passwords. Create an AuthComponent with ng g c auth Angular CLI command.

src/app/auth/auth.component.ts


_38import { Component } from '@angular/core'
_38import { FormBuilder } from '@angular/forms'
_38import { SupabaseService } from '../supabase.service'
_38
_38@Component({
_38  selector: 'app-auth',
_38  templateUrl: './auth.component.html',
_38  styleUrls: ['./auth.component.css'],
_38})
_38export class AuthComponent {
_38  loading = false
_38
_38  signInForm = this.formBuilder.group({
_38    email: '',
_38  })
_38
_38  constructor(
_38    private readonly supabase: SupabaseService,
_38    private readonly formBuilder: FormBuilder
_38  ) {}
_38
_38  async onSubmit(): Promise<void> {
_38    try {
_38      this.loading = true
_38      const email = this.signInForm.value.email as string
_38      const { error } = await this.supabase.signIn(email)
_38      if (error) throw error
_38      alert('Check your email for the login link!')
_38    } catch (error) {
_38      if (error instanceof Error) {
_38        alert(error.message)
_38      }
_38    } finally {
_38      this.signInForm.reset()
_38      this.loading = false
_38    }
_38  }
_38}

src/app/auth/auth.component.html


_23<div class="row flex-center flex">
_23  <div class="col-6 form-widget" aria-live="polite">
_23    <h1 class="header">Supabase + Angular</h1>
_23    <p class="description">Sign in via magic link with your email below</p>
_23    <form [formGroup]="signInForm" (ngSubmit)="onSubmit()" class="form-widget">
_23      <div>
_23        <label for="email">Email</label>
_23        <input
_23          id="email"
_23          formControlName="email"
_23          class="inputField"
_23          type="email"
_23          placeholder="Your email"
_23        />
_23      </div>
_23      <div>
_23        <button type="submit" class="button block" [disabled]="loading">
_23          {{ loading ? 'Loading' : 'Send magic link' }}
_23        </button>
_23      </div>
_23    </form>
_23  </div>
_23</div>

Account page#

Users also need a way to edit their profile details and manage their accounts after signing in. Create an AccountComponent with the ng g c account Angular CLI command.

src/app/account/account.component.ts


_87import { Component, Input, OnInit } from '@angular/core'
_87import { FormBuilder } from '@angular/forms'
_87import { AuthSession } from '@supabase/supabase-js'
_87import { Profile, SupabaseService } from '../supabase.service'
_87
_87@Component({
_87  selector: 'app-account',
_87  templateUrl: './account.component.html',
_87  styleUrls: ['./account.component.css'],
_87})
_87export class AccountComponent implements OnInit {
_87  loading = false
_87  profile!: Profile
_87
_87  @Input()
_87  session!: AuthSession
_87
_87  updateProfileForm = this.formBuilder.group({
_87    username: '',
_87    website: '',
_87    avatar_url: '',
_87  })
_87
_87  constructor(private readonly supabase: SupabaseService, private formBuilder: FormBuilder) {}
_87
_87  async ngOnInit(): Promise<void> {
_87    await this.getProfile()
_87
_87    const { username, website, avatar_url } = this.profile
_87    this.updateProfileForm.patchValue({
_87      username,
_87      website,
_87      avatar_url,
_87    })
_87  }
_87
_87  async getProfile() {
_87    try {
_87      this.loading = true
_87      const { user } = this.session
_87      const { data: profile, error, status } = await this.supabase.profile(user)
_87
_87      if (error && status !== 406) {
_87        throw error
_87      }
_87
_87      if (profile) {
_87        this.profile = profile
_87      }
_87    } catch (error) {
_87      if (error instanceof Error) {
_87        alert(error.message)
_87      }
_87    } finally {
_87      this.loading = false
_87    }
_87  }
_87
_87  async updateProfile(): Promise<void> {
_87    try {
_87      this.loading = true
_87      const { user } = this.session
_87
_87      const username = this.updateProfileForm.value.username as string
_87      const website = this.updateProfileForm.value.website as string
_87      const avatar_url = this.updateProfileForm.value.avatar_url as string
_87
_87      const { error } = await this.supabase.updateProfile({
_87        id: user.id,
_87        username,
_87        website,
_87        avatar_url,
_87      })
_87      if (error) throw error
_87    } catch (error) {
_87      if (error instanceof Error) {
_87        alert(error.message)
_87      }
_87    } finally {
_87      this.loading = false
_87    }
_87  }
_87
_87  async signOut() {
_87    await this.supabase.signOut()
_87  }
_87}

src/app/account/account.component.html


_24<form [formGroup]="updateProfileForm" (ngSubmit)="updateProfile()" class="form-widget">
_24  <div>
_24    <label for="email">Email</label>
_24    <input id="email" type="text" [value]="session.user.email" disabled />
_24  </div>
_24  <div>
_24    <label for="username">Name</label>
_24    <input formControlName="username" id="username" type="text" />
_24  </div>
_24  <div>
_24    <label for="website">Website</label>
_24    <input formControlName="website" id="website" type="url" />
_24  </div>
_24
_24  <div>
_24    <button type="submit" class="button primary block" [disabled]="loading">
_24      {{ loading ? 'Loading ...' : 'Update' }}
_24    </button>
_24  </div>
_24
_24  <div>
_24    <button class="button block" (click)="signOut()">Sign Out</button>
_24  </div>
_24</form>

Launch!#

Now that we have all the components in place, let's update AppComponent:

src/app/app.component.ts


_19import { Component, OnInit } from '@angular/core'
_19import { SupabaseService } from './supabase.service'
_19
_19@Component({
_19  selector: 'app-root',
_19  templateUrl: './app.component.html',
_19  styleUrls: ['./app.component.css'],
_19})
_19export class AppComponent implements OnInit {
_19  title = 'angular-user-management'
_19
_19  session = this.supabase.session
_19
_19  constructor(private readonly supabase: SupabaseService) {}
_19
_19  ngOnInit() {
_19    this.supabase.authChanges((_, session) => (this.session = session))
_19  }
_19}

src/app/app.component.html


_10<div class="container" style="padding: 50px 0 100px 0">
_10  <app-account *ngIf="session; else auth" [session]="session"></app-account>
_10  <ng-template #auth>
_10    <app-auth></app-auth>
_10  </ng-template>
_10</div>

app.module.ts also needs to be modified to include the ReactiveFormsModule from the @angular/forms package.

src/app/app.module.ts


_16import { NgModule } from '@angular/core'
_16import { BrowserModule } from '@angular/platform-browser'
_16
_16import { AppComponent } from './app.component'
_16import { AuthComponent } from './auth/auth.component'
_16import { AccountComponent } from './account/account.component'
_16import { ReactiveFormsModule } from '@angular/forms'
_16import { AvatarComponent } from './avatar/avatar.component'
_16
_16@NgModule({
_16  declarations: [AppComponent, AuthComponent, AccountComponent, AvatarComponent],
_16  imports: [BrowserModule, ReactiveFormsModule],
_16  providers: [],
_16  bootstrap: [AppComponent],
_16})
_16export class AppModule {}

Once that's done, run this in a terminal window:


_10npm run start

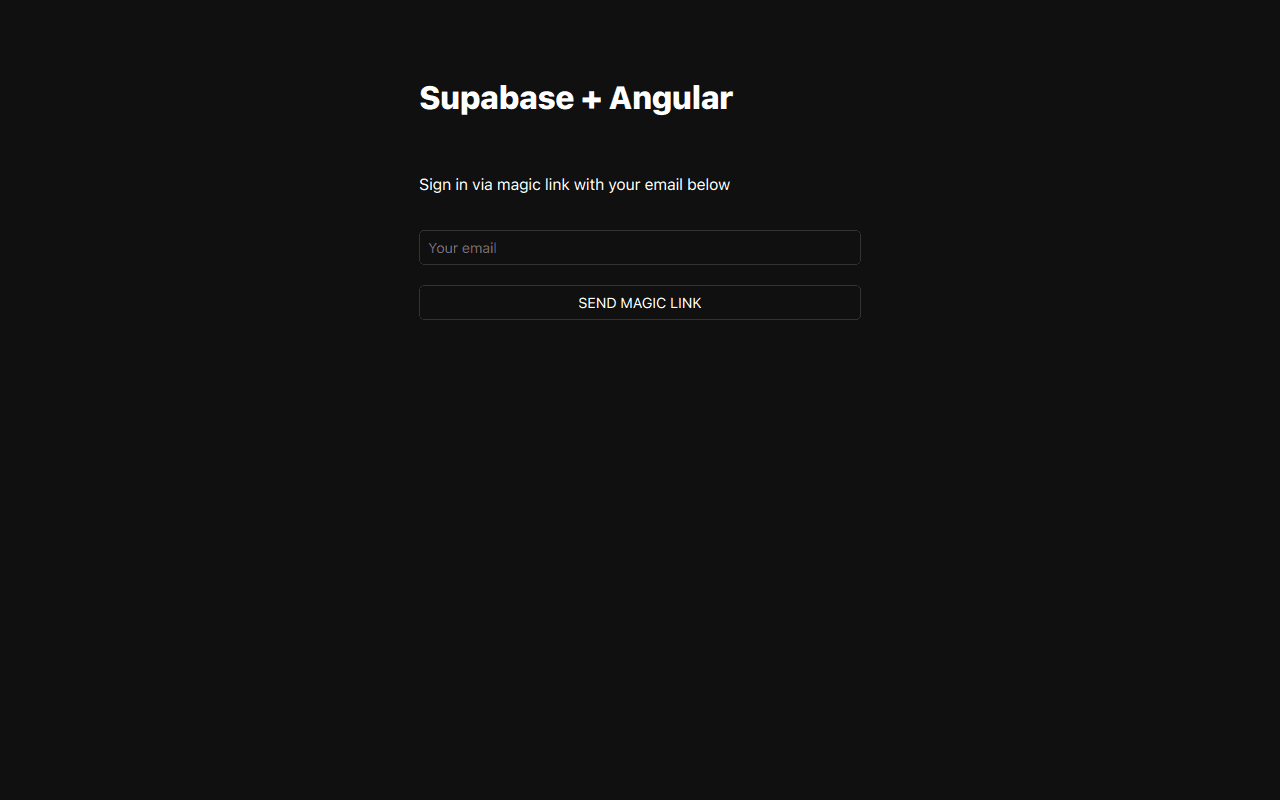

And then open the browser to localhost:4200 and you should see the completed app.

Supabase Angular

Bonus: Profile photos#

Every Supabase project is configured with Storage for managing large files like photos and videos.

Let's create an avatar for the user so that they can upload a profile photo. Create an AvatarComponent with ng g c avatar Angular CLI command.

src/app/avatar/avatar.component.ts


_59import { Component, EventEmitter, Input, Output } from '@angular/core'
_59import { SafeResourceUrl, DomSanitizer } from '@angular/platform-browser'
_59import { SupabaseService } from '../supabase.service'
_59
_59@Component({
_59  selector: 'app-avatar',
_59  templateUrl: './avatar.component.html',
_59  styleUrls: ['./avatar.component.css'],
_59})
_59export class AvatarComponent {
_59  _avatarUrl: SafeResourceUrl | undefined
_59  uploading = false
_59
_59  @Input()
_59  set avatarUrl(url: string | null) {
_59    if (url) {
_59      this.downloadImage(url)
_59    }
_59  }
_59
_59  @Output() upload = new EventEmitter<string>()
_59
_59  constructor(private readonly supabase: SupabaseService, private readonly dom: DomSanitizer) {}
_59
_59  async downloadImage(path: string) {
_59    try {
_59      const { data } = await this.supabase.downLoadImage(path)
_59      if (data instanceof Blob) {
_59        this._avatarUrl = this.dom.bypassSecurityTrustResourceUrl(URL.createObjectURL(data))
_59      }
_59    } catch (error) {
_59      if (error instanceof Error) {
_59        console.error('Error downloading image: ', error.message)
_59      }
_59    }
_59  }
_59
_59  async uploadAvatar(event: any) {
_59    try {
_59      this.uploading = true
_59      if (!event.target.files || event.target.files.length === 0) {
_59        throw new Error('You must select an image to upload.')
_59      }
_59
_59      const file = event.target.files[0]
_59      const fileExt = file.name.split('.').pop()
_59      const filePath = `${Math.random()}.${fileExt}`
_59
_59      await this.supabase.uploadAvatar(filePath, file)
_59      this.upload.emit(filePath)
_59    } catch (error) {
_59      if (error instanceof Error) {
_59        alert(error.message)
_59      }
_59    } finally {
_59      this.uploading = false
_59    }
_59  }
_59}

src/app/avatar/avatar.component.html


_23<div>
_23  <img
_23    *ngIf="_avatarUrl"
_23    [src]="_avatarUrl"
_23    alt="Avatar"
_23    class="avatar image"
_23    style="height: 150px; width: 150px"
_23  />
_23</div>
_23<div *ngIf="!_avatarUrl" class="avatar no-image" style="height: 150px; width: 150px"></div>
_23<div style="width: 150px">
_23  <label class="button primary block" for="single">
_23    {{ uploading ? 'Uploading ...' : 'Upload' }}
_23  </label>
_23  <input
_23    style="visibility: hidden;position: absolute"
_23    type="file"
_23    id="single"
_23    accept="image/*"
_23    (change)="uploadAvatar($event)"
_23    [disabled]="uploading"
_23  />
_23</div>

And then we can add the widget on top of the AccountComponent html template:

src/app/account.component.html


_10<form [formGroup]="updateProfileForm" (ngSubmit)="updateProfile()" class="form-widget">
_10  <app-avatar [avatarUrl]="this.avatarUrl" (upload)="updateAvatar($event)"> </app-avatar>
_10  <!-- input fields -->
_10</form>

And add an updateAvatar function along with an avatarUrl getter to the AccountComponent typescript file:

src/app/account.component.ts


_19@Component({
_19  selector: 'app-account',
_19  templateUrl: './account.component.html',
_19  styleUrls: ['./account.component.css'],
_19})
_19export class AccountComponent implements OnInit {
_19  // ...
_19  get avatarUrl() {
_19    return this.updateProfileForm.value.avatar_url as string
_19  }
_19
_19  async updateAvatar(event: string): Promise<void> {
_19    this.updateProfileForm.patchValue({
_19      avatar_url: event,
_19    })
_19    await this.updateProfile()
_19  }
_19  // ...
_19}

Storage management#

If you upload additional profile photos, they'll accumulate in the avatars bucket because of their random names with only the latest being referenced from public.profiles and the older versions getting orphaned.

To automatically remove obsolete storage objects, extend the database triggers. Note that it is not sufficient to delete the objects from the storage.objects table because that would orphan and leak the actual storage objects in the S3 backend. Instead, invoke the storage API within Postgres via the http extension.

Enable the http extension for the extensions schema in the Dashboard. Then, define the following SQL functions in the SQL Editor to delete storage objects via the API:


_34create or replace function delete_storage_object(bucket text, object text, out status int, out content text)
_34returns record
_34language 'plpgsql'
_34security definer
_34as $$
_34declare
_34  project_url text := '<YOURPROJECTURL>';
_34  service_role_key text := '<YOURSERVICEROLEKEY>'; --  full access needed
_34  url text := project_url||'/storage/v1/object/'||bucket||'/'||object;
_34begin
_34  select
_34      into status, content
_34           result.status::int, result.content::text
_34      FROM extensions.http((
_34    'DELETE',
_34    url,
_34    ARRAY[extensions.http_header('authorization','Bearer '||service_role_key)],
_34    NULL,
_34    NULL)::extensions.http_request) as result;
_34end;
_34$$;
_34
_34create or replace function delete_avatar(avatar_url text, out status int, out content text)
_34returns record
_34language 'plpgsql'
_34security definer
_34as $$
_34begin
_34  select
_34      into status, content
_34           result.status, result.content
_34      from public.delete_storage_object('avatars', avatar_url) as result;
_34end;
_34$$;

Next, add a trigger that removes any obsolete avatar whenever the profile is updated or deleted:


_32create or replace function delete_old_avatar()
_32returns trigger
_32language 'plpgsql'
_32security definer
_32as $$
_32declare
_32  status int;
_32  content text;
_32  avatar_name text;
_32begin
_32  if coalesce(old.avatar_url, '') <> ''
_32      and (tg_op = 'DELETE' or (old.avatar_url <> coalesce(new.avatar_url, ''))) then
_32    -- extract avatar name
_32    avatar_name := old.avatar_url;
_32    select
_32      into status, content
_32      result.status, result.content
_32      from public.delete_avatar(avatar_name) as result;
_32    if status <> 200 then
_32      raise warning 'Could not delete avatar: % %', status, content;
_32    end if;
_32  end if;
_32  if tg_op = 'DELETE' then
_32    return old;
_32  end if;
_32  return new;
_32end;
_32$$;
_32
_32create trigger before_profile_changes
_32  before update of avatar_url or delete on public.profiles
_32  for each row execute function public.delete_old_avatar();

Finally, delete the public.profile row before a user is deleted. If this step is omitted, you won't be able to delete users without first manually deleting their avatar image.


_14create or replace function delete_old_profile()
_14returns trigger
_14language 'plpgsql'
_14security definer
_14as $$
_14begin
_14  delete from public.profiles where id = old.id;
_14  return old;
_14end;
_14$$;
_14
_14create trigger before_delete_user
_14  before delete on auth.users
_14  for each row execute function public.delete_old_profile();

At this stage you have a fully functional application!

Edit this page on GitHub

Build a User Management App with Angular

note

Project setup#

Create a project#

Set up the database schema#

note

Get the API Keys#

Building the App#

Initialize an Angular app#

Account page#

Launch!#

Bonus: Profile photos#

Create an upload widget#

Add the new widget#

Storage management#

Build a User Management App with Angular

note

Project setup#

Create a project#

Set up the database schema#

note

Get the API Keys#

Building the App#

Initialize an Angular app#

Set up a Login component#

Account page#

Launch!#

Bonus: Profile photos#

Create an upload widget#

Add the new widget#

Storage management#
